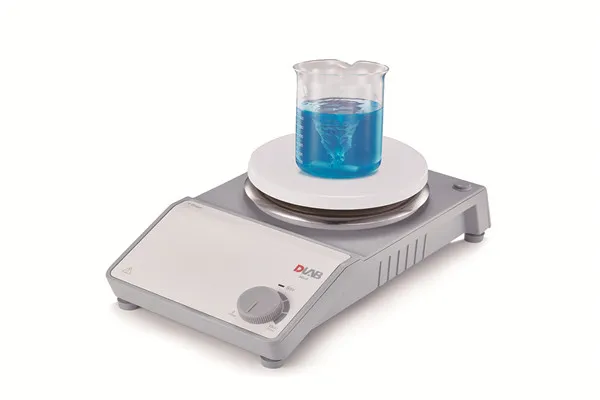

Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical an chemical analysis, bio-pharmaceuticals etc.
Specifications
| Work plate dimension | φ135mm(5 inch) |
| Work plate material | Stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Motor input power | 18W |
| Motor output power | 10W |
| Power | 30W |
| Voltage | 100-240V,50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 0-1500rpm |
| Speed display | Scale |
| Protection class | IP42 |
| Dimension[WxDxH] | 160×280×85mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
| Key features |
|
