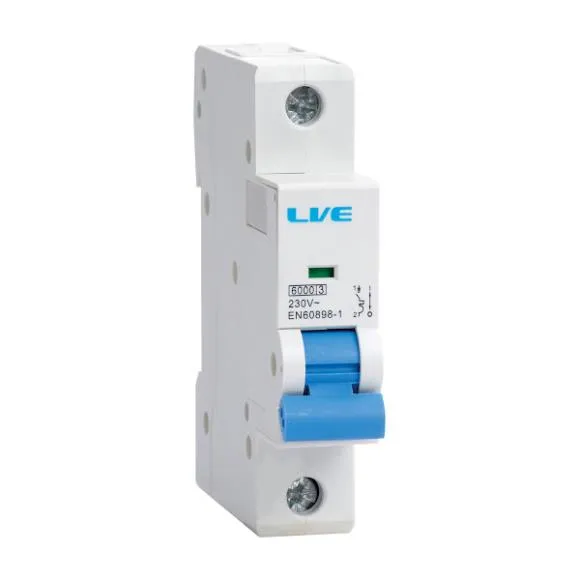

LIVE Electrical CA110B Single Pole 10A B Curve 6kA MCB

Product Description

Single Pole 6kA Miniature Circuit Breakers (MCB)

Specification:

• Rated current In (A) : 6A.
• Poles: 1P.
• Rated voltage Ue(AC): 230V.
• Rated frequency: 50/60Hz.
• Insulation volage Ui: 500V.
• Rated breaking capacity(A): 6kA.
• Rated impulse withstand voltage(1.2/50) Uimp (V): 4000.
• Dielectric test voltage at ind. Frq for 1 min (KV) : 2.
• Ambient temperature(with daily average ?35 ^oC?-5~ 40).
• Thermo-magnetic release characteristic: B
• Electrical life: 8,000.
• Contact position degree: Ip20.
• Storage temperature( ^oC)?-25~ 70).
• Reference temperature for setting of thermal element ( ^oC)?30.
• Cable terminal capacity maximum?16mm².
