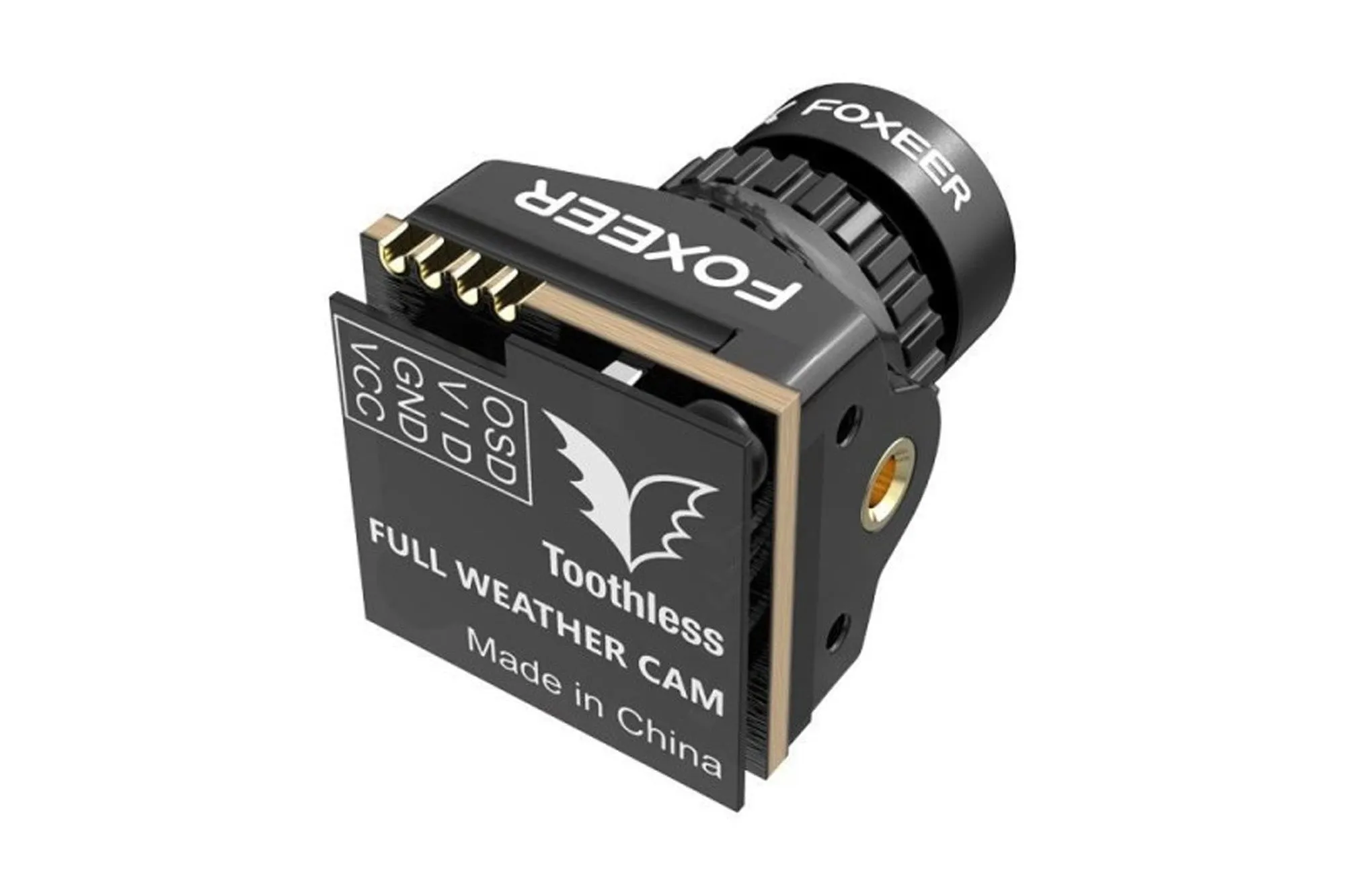

Specification
| Sensor Type | Sony 1/2" CMOS Sensor |
| Scale | 4:3/16:9 Switchable |
| Tv System | PAL/NTSC Switchable |
| Resolution | 1200TVL |
| FOV | StarLight 4:3 FOV-H: 115° FOV-D:145° |
| StarLight 16:9 FOV-H: 115° FOV-D:130° | |
| Standard 4:3 FOV-H: 130° FOV-D:160° | |
| Standard 16:9 FOV-H: 130° FOV-D:145° | |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.0001Lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 100dB |
| DAY/NIGHT | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Input Voltage | 5V~16V |
| Language | ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Consumption | 80mA±15% @ DC12V 170mA±15% @ DC5V |
| Dimension | Original：14*14mm， 19*19mm adding bracket |
| Weight | 3.1g(Exclude cable) |
