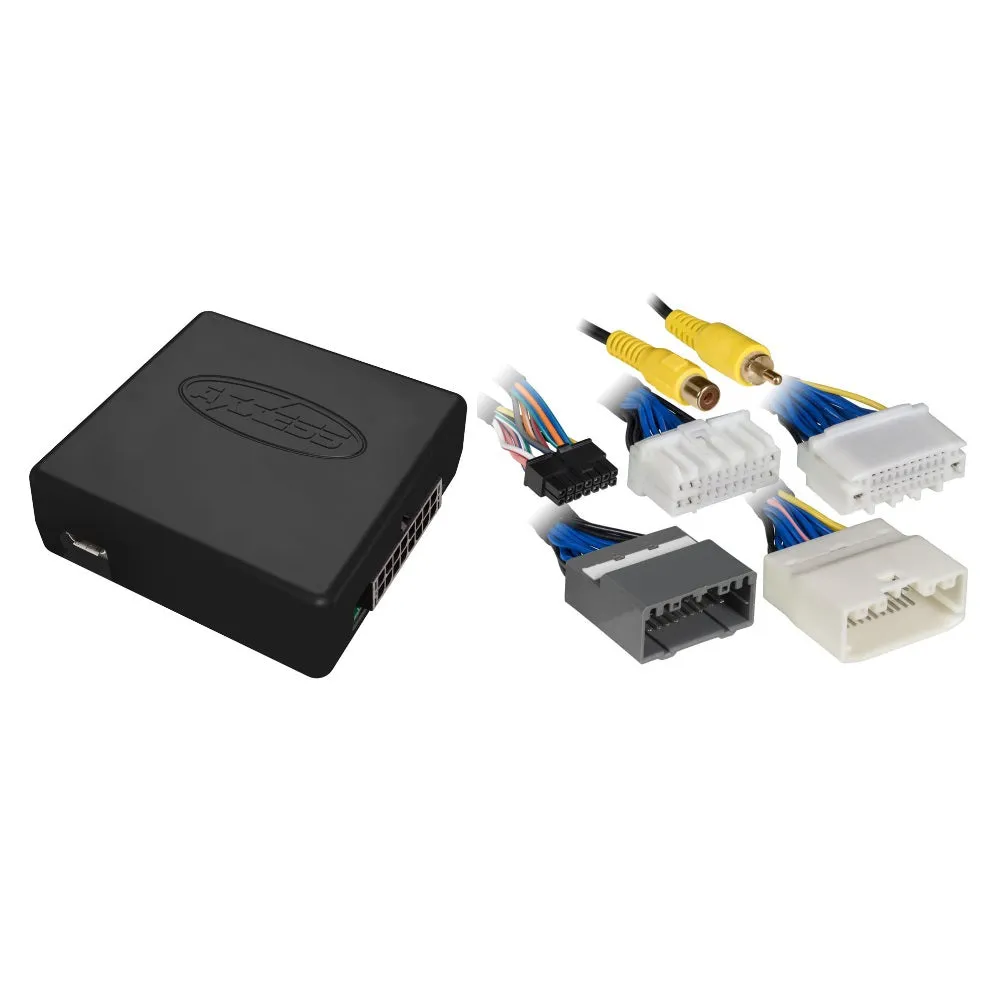

AX-ADDCAM Add-On Multiple CAN Activated Cameras

To be used when adding cameras to an OEM screen
(4) Camera inputs
Programmable 12V 5-amp switched output (configured through the Axxess Updater program)
Reverse signal trigger generated via CAN bus communication of the vehicle
Turn signal trigger generated via CAN bus communication of the vehicle
(4) Programmable camera control wires (configured through the Axxess Updater program)
Can also be manually controlled, and used along with an aftermarket radio
VSS (Vehicle Speed Sense) input and output
Micro B USB updatable

AX-ADDCAM-CH3 / AX-ADDCAM Interface with Plug & Play Harness for Chrysler/Dodge
Chrysler
300 2011-2014 (1)
Dodge
Charger 2011-2014 (1)
Journey 2011-2018 (1)
(1) With 8.4-inch UConnect RB5 or RE2 radio

AX-ADDCAM-CH4 / AX-ADDCAM Interface with Plug & Play Harness for Chrysler
Chrysler 2010-2017

AX-ADDCAM-CH5 / AX-ADDCAM Interface with Plug & Play Harness for Chrysler
Chrysler 2013-2017

AX-ADDCAM-CH6 / AX-ADDCAM Interface with Plug & Play Harness for FCA
Promaster 2014-up
Promaster City 2015-2017

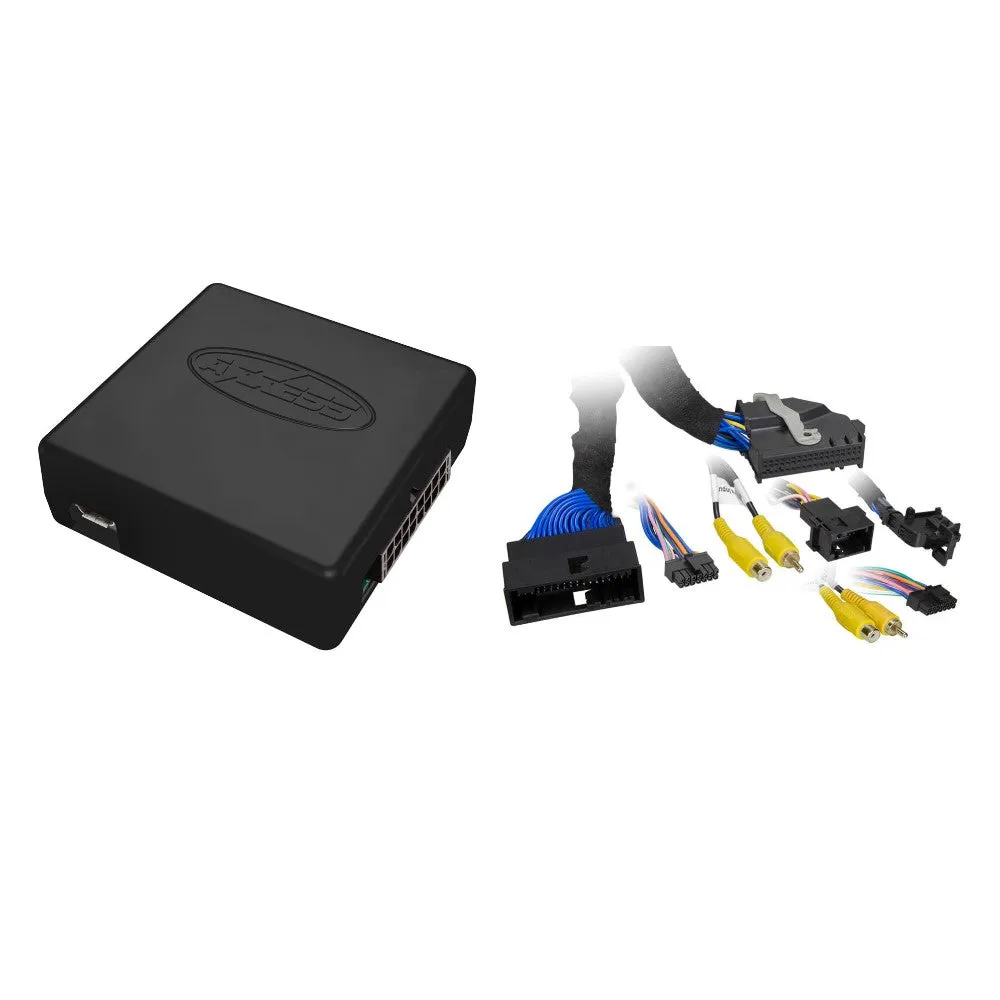

AX-ADDCAM-FD1 / AX-ADDCAM Interface with Plug & Play Harness for Ford
Edge 2011-Up
F-150/250 2013-Up
Focus 2012-Up
Fusion 2013-Up
Mustang 2015-Up
Ranger 2019-Up
Transit 2014-Up
Transit Connect 2015-Up

AX-ADDCAM-MAZ1 / AX-ADDCAM Interface with Plug & Play Harness for Mazda
Mazda (with full-colour LCD screen) 2013-up

AX-ADDCAM-MAZ2 / AX-ADDCAM Interface with Plug & Play Harness for Mazda
Mazda 2014-UP
